Damper Rods

Product Feature

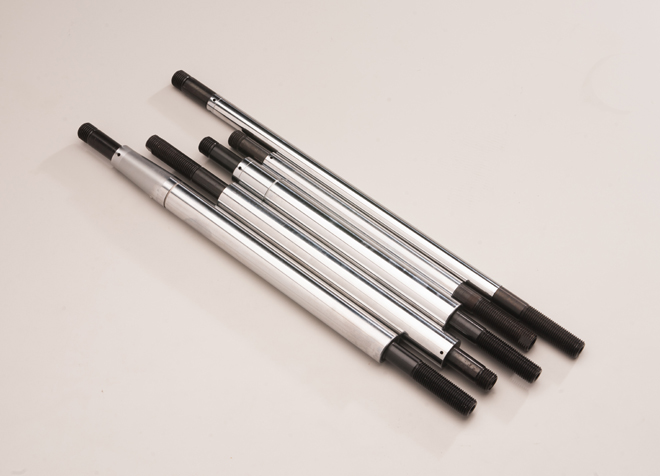

A damper rod is a pivotal part of a damper-rod fork used in front telescopic shock absorbers and rear fork shock absorbers.

The damper rod design can influence the performance of a fork, and therefore it is crucial to start thinking about damper-rod fork performance from the design stage. Yin-Ching has decades of experience in the design and manufacture of parts for motorcycle shocks. Our damper rods support the fork performance and optimal performance of the motorcycle suspension system.

  • Damper rods made of S45C medium carbon steel. The material conforms to JIS S45C / DIN CK45 / SAE 1045 and JIS S55C.
  • Damper rods suitable for both front and rear motorcycle shocks.
  • Higher tensile strength after a precision cold drawing process.
  • Wear and corrosion resistance thanks to hard chrome plating processing.
  • High-frequency hardening processing.
Product Specification
    Chemical Composition (%) Extension Test
General Code C Si Mn P S Yield Point
kg/mm²		 Tensile Strength
kg/mm²		 Elongation %
Carbon steel for mechanical construction
JIS G4051		 S45C 0.42-0.48 0.15-0.35 0.60-0.70 0.030 or less 0.024 or less 35 or more 58 or more 20 or more
